12V 200RPM DC N20 Micro Metal Gearmotor

Regular price $7.95 AUD
Regular price Sale price $7.95 AUD
Quantity In Stock: Out of stock
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Regular price $7.95 AUD
Regular price Sale price $7.95 AUD

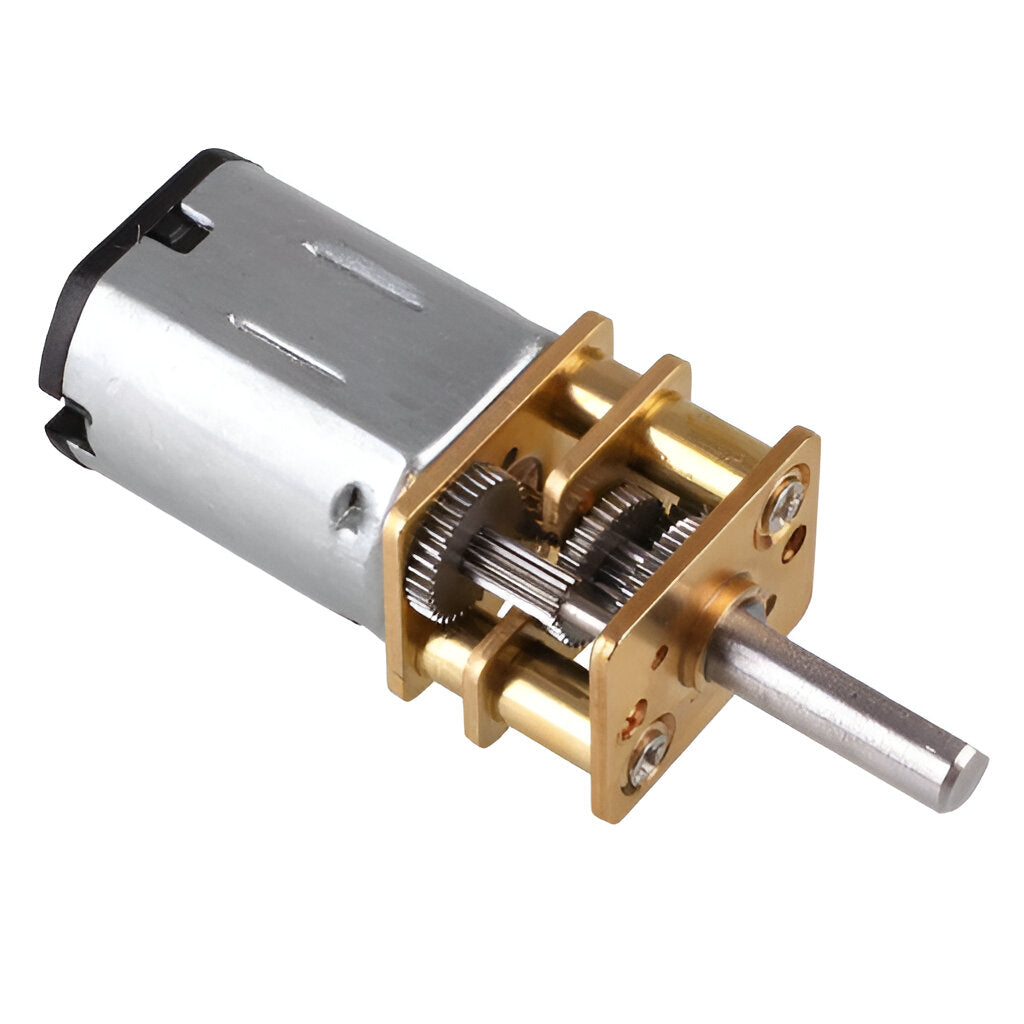

This small yet powerful motor is a great solution for the small-sized robot.
We have been carrying SPG10 Micro Metal Gearmotor for quite some time and it has served the makers community well. Many are using it to build the small-sized mobile robot for sumo, small automation model and of course other application too. With the standard size and variety of gear ratio, users can always change the motor without changing the existing robot design.

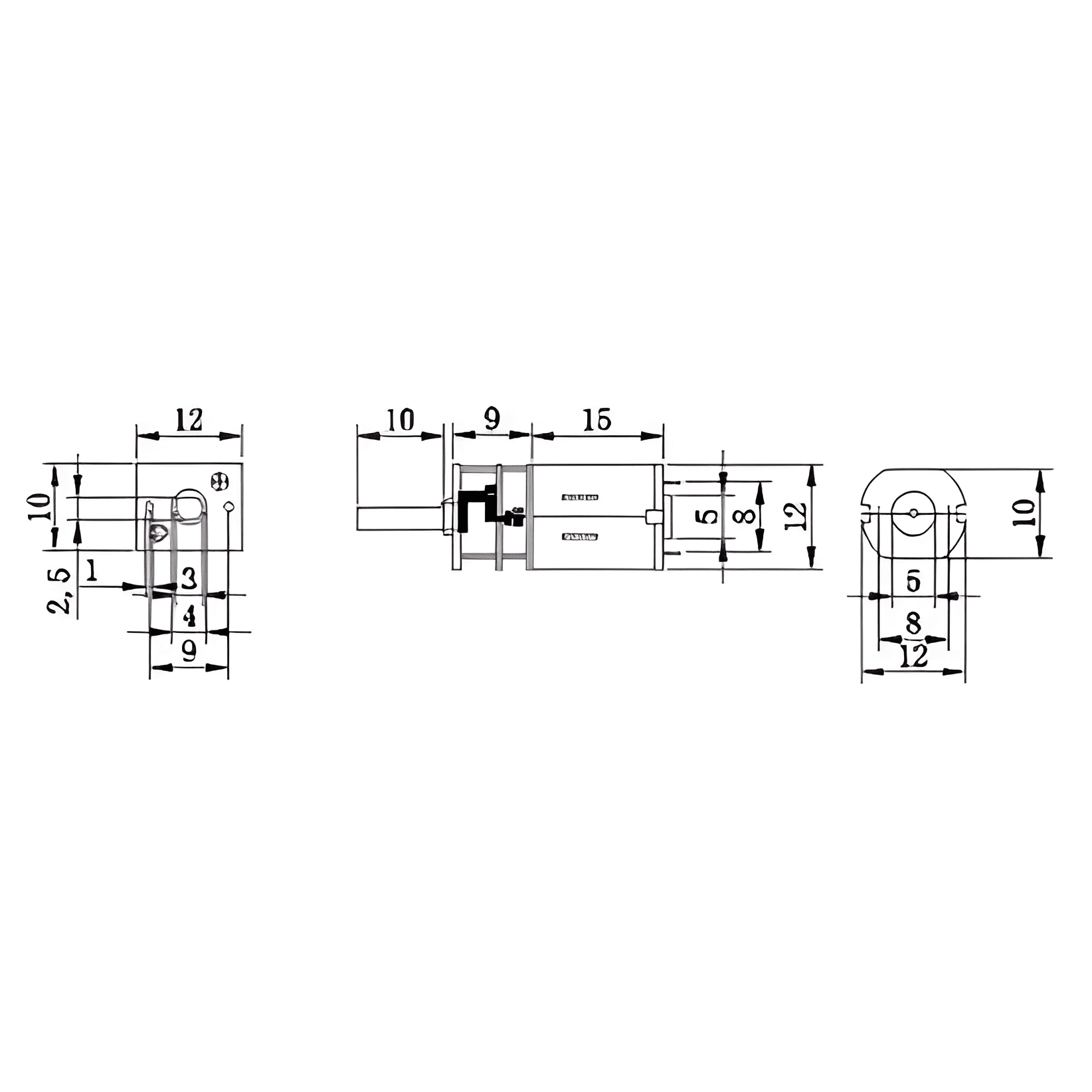

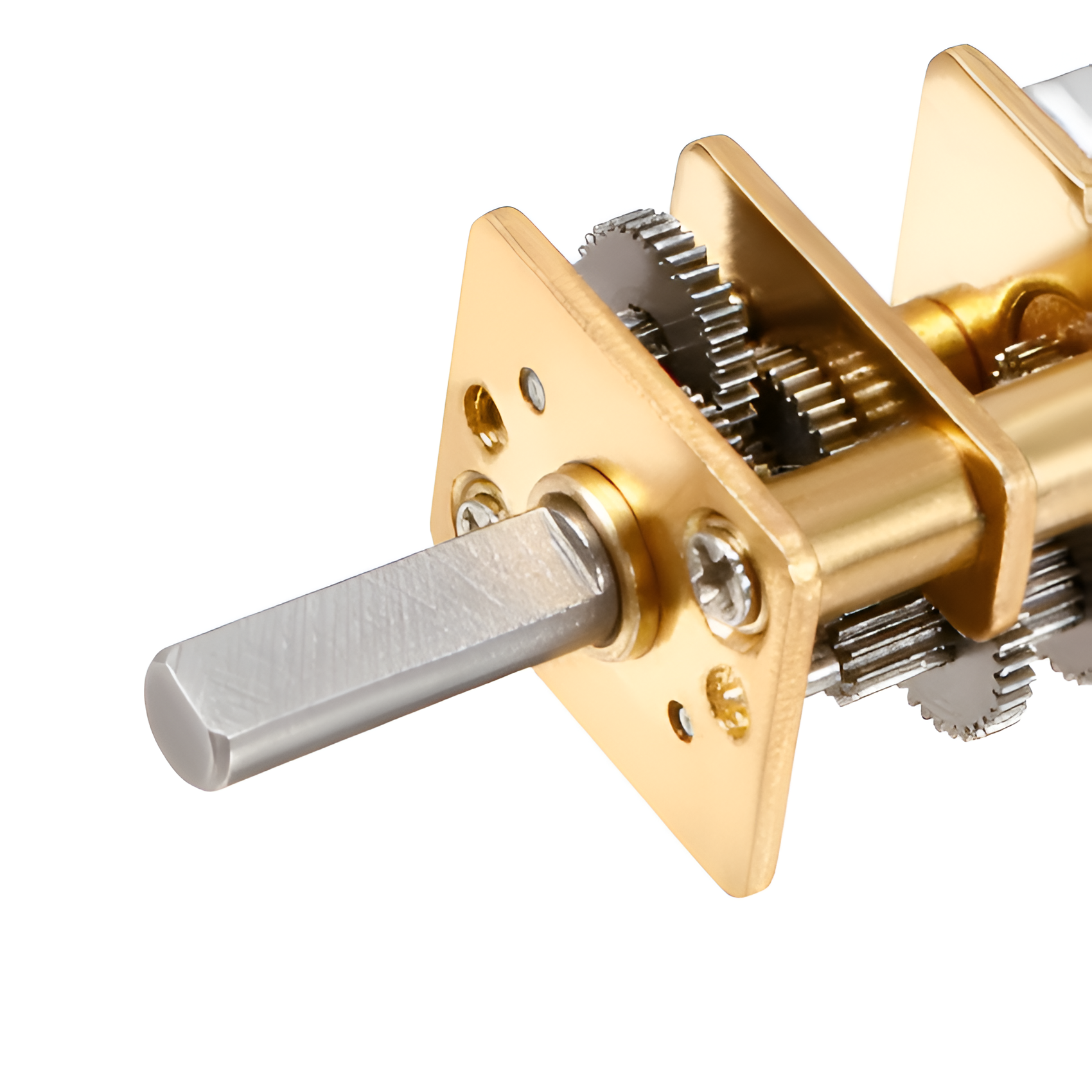

This motor comes with 150:1 gearbox attached. The gearbox output shaft is a D-shaped with 9mm long and 3mm in diameter. There are several types of wheels that you may use together with this motor.
The nominal voltage is 12V, yet we have tried to drive this motor from 3V to 12V. Lower voltage might not have enough torque to drive the wheel or mechanism; higher voltage will provide higher torque and higher speed, but it will shorten the life of the motor.

Features

Specifications:

  • Rated voltage: 12VDC
  • Tested voltage range: 3V to 12V
  • Speed at no load, 12V: 51 to 200 rpm
  • Stall torque, 12V: 1.10 kg/cm
  • Weight: 10g
  • Gear ratio: 150:1
  • Shaft: D-shaped with 3mm diameter, 9mm in length
  • Motor Diameter: 10mm x 12mm
  • Encoder: No
Packing List
  • 1 x 12V 200RPM DC Micro Metal Gearmotor
