12V 1000RPM 25D High Power Gearmotor

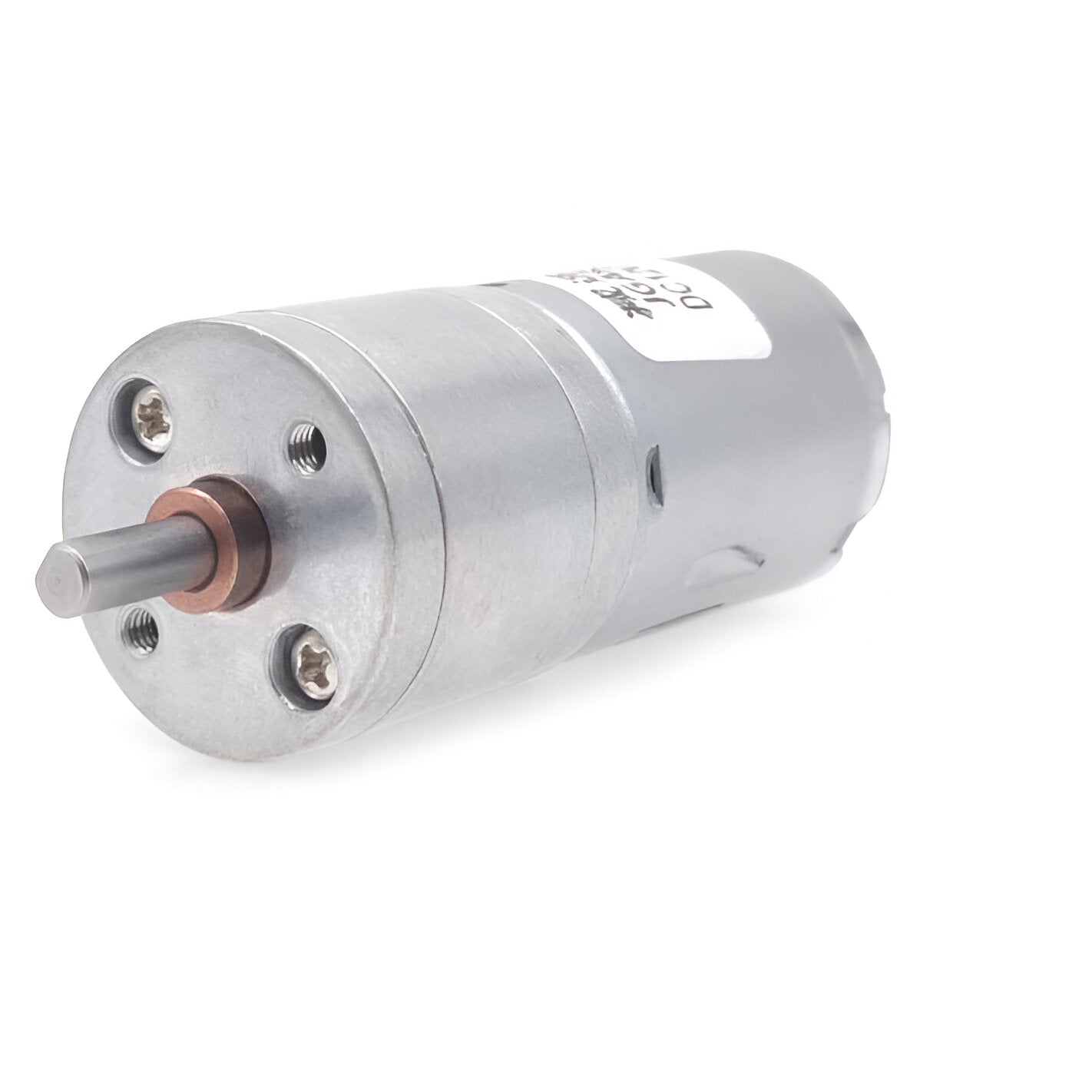

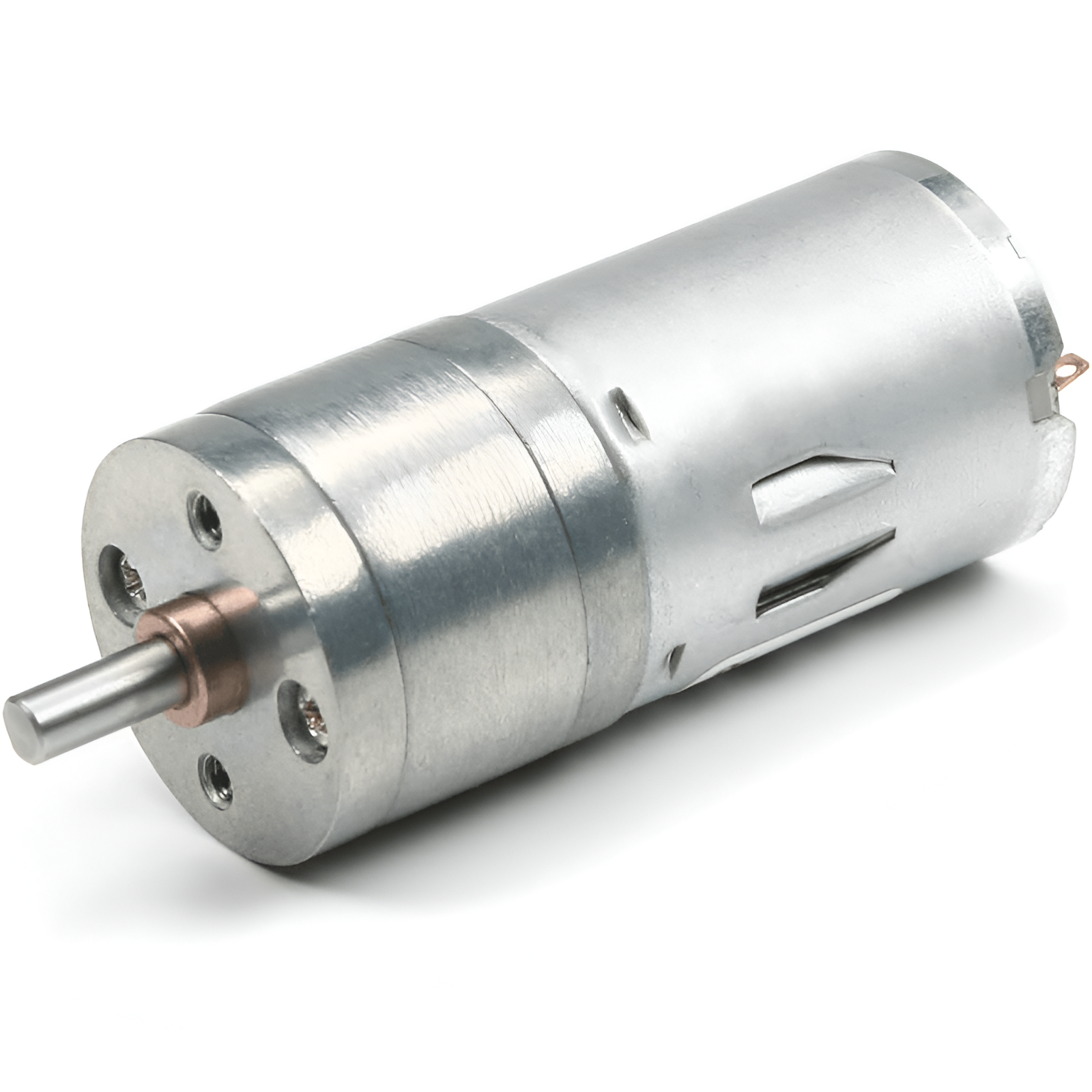

This gearmotor consists of a high-power, 12 V brushed DC motor combined with a metal spur gearbox. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox.

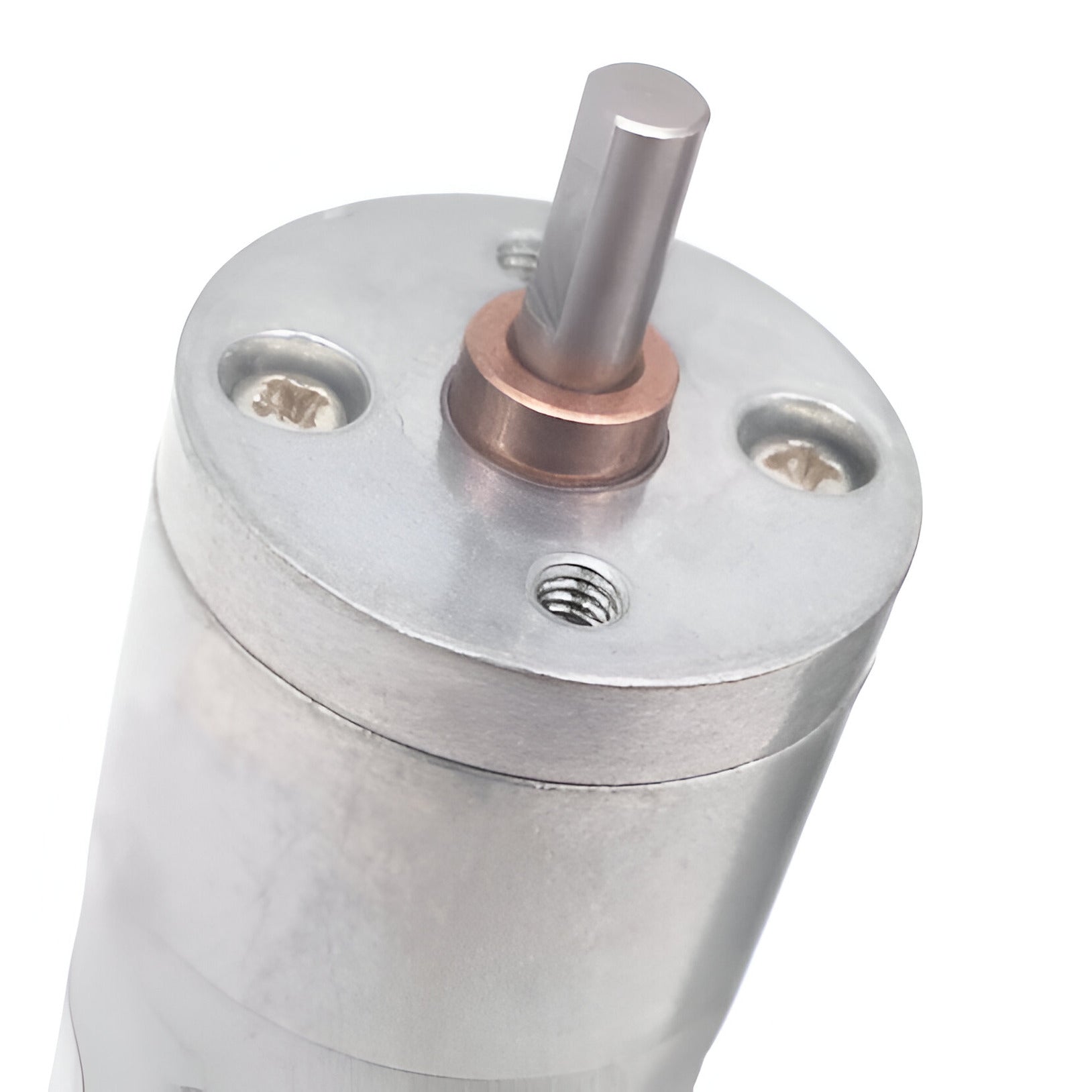

The face plate has two mounting holes threaded for M3 screws. You can use our custom-designed 25D Metal Gearmotor Bracket (shown in the picture below) to mount the gearmotor to your project via these mounting holes and the screws that come with the bracket.
